Réalisations - FCC Components
- Reactor and regenerator steam and fluffing rings (multiple dimensions) with rammed refractory lining. Hason can fabricate small FCC components to fit any size of manway for ease of installation.
- 1 ¼ Cr – ½ Mo
- NPS 6” diameter
- 4 200 lbs
- Various dimensions

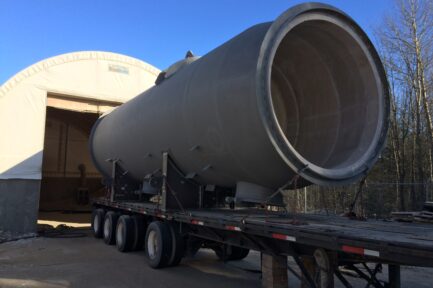

- Multi-holes orifice chamber with casted tru-flow refractory lining, thermal dryout, stainless steel internal heads and external coating.
- Carbon steel
- 9’-0” diameter
- 123 000 lbs
- 35’-0” long

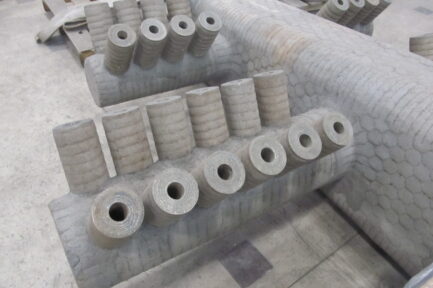

- Regenerator air grid with 1” thick abrasion resistant lining. Hason designed and fabricated air grids under UOP, Shell and KBR designs.
- 304H Stainless steel
- 24’-0” diameter
- 56 000 lbs
- 24’-0” long

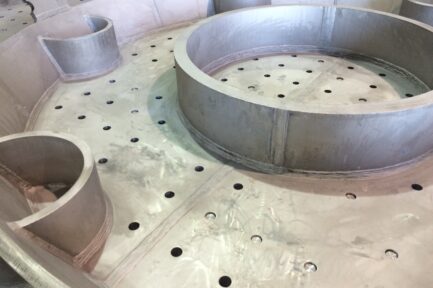

- Regenerator grid plate, 1 ½” thick with machined aeration nozzles, penetrant liquid examination, full trial-fit and phase array UT.
- 304H Stainless steel
- 40’-0” diameter
- 92 000 lbs
- 40’-0” long

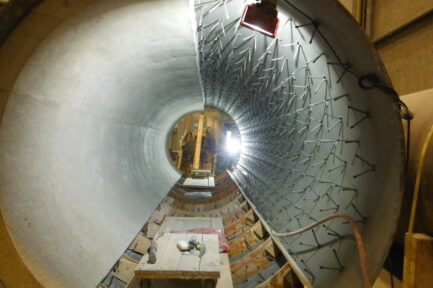

- Flue gas line over 200’ long with casted refractory lining and thermal dryout.
- Carbon steel
- 77” diameter
- 428 000 lbs
- 205’-0” long

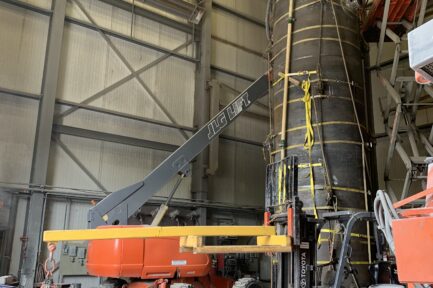

- Cold wall external riser with feed cone and J-Bend. Pumpcast refractory installed in-house with thermal dryout and external coating included.
- Carbon steel
- 84” diameter
- 130 000 lbs
- 76’-0” long
